DIY Electric Bike Kit

Voltage : 36V, 36V

Design : Brushless

Wattage : > 400w

Structure : Electromagnetic

Sample : Available

Weight : 2.7kg

Power : 250W / 350W

Speed : 25-32 Km/H

Gears : Single/ 6/7 Speed Gears

Wheel Size : 12''--28''700c

Export Markets : Global

Supply Ability : 3000 Set/Sets per Week

Packaging Details : 1set/carton

Port : Shanghai

MOQ : 1 Set/Sets

Price : $140.00 - $380.00 / Set

Place of Origin : 2232

Contact Now

DIY Electric Bike Kit

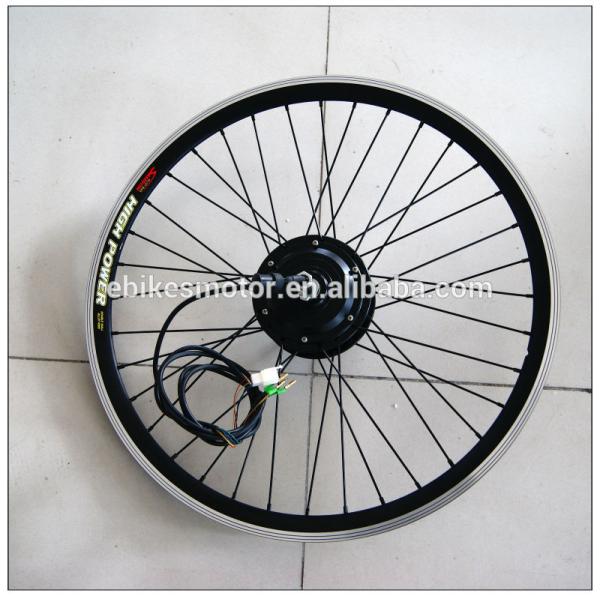

36V 350W small brushless geared hub motor for any ebike
Front / Rear Wheel electric bicycle BLDS motor 250W:
1. BLDC e bike hub motor
2.24V 36V 180-350W motor
3. Certification: CE EN15194
1.24V/36V -from 150W to 350W. Front / Rear brushless geared hub motor.
Phase angle 120 degree. Diameter=128mm. Weight=2.7kg.
2. Available to add disc brake and 6/7 speed gears maxed.
3. Front axel: 130mm Rear axel: 135mm
4. Silver, black colors for options
5. Performance: Max speed=25-32km/h. Loading: 120 kg efficency=80%
6. With CE, EN15194 certifications
DONGNAN EBIKES Geared electric bike motor / 36V 350W hub motor is hot in European market!

1.24V/36V -from 150W to 250W . front brushless geared hub motor. phase angle 120 degree. axle=100mm, diameter=128mm. weight=2.7kg.

2.available to add disc brake.

3.waterproof connector.(optional )

4.silver ,black colors for options.

5.performance: speed=25-32km/h.load=120kg. efficency=80% .

6.with CE, EN15194 certifications.

7. btw, we have same type motor but not available to add disc brake

Why do we use a Double Walled Rim and heavy duty 36 Gauge Spokes? ?
In the beginning we tried various kits and many of the brush less motors were very good motors. The problem with most of the conversion kits available are that they are spoked incorrectly, use a single walled weak rim., have spokes that are the wrong length causing the spokes to be bent in an "s" shape. Simply put bicycle wheels were not made for this type of torque on them and on occasion you will need to tighten your spokes until they finally "seat" themselves.

FRONT wheel or REAR wheel ?
FRONT elctric bike kits= easy to install, easy to maintain. This is the best for
Balance if you are using SLA batteries on a rear mounted rack because of
The weight.
REAR electric bike kits= harder to install, BUT for big motor, =More safety Installation only for the very
Mechanically inclined or professional. Only enough space for 7 rear speeds
Max (we ship with 5 speed). Bad balance if you are using heavy SLA
Batteries...Good for wheelie's lol but bad and unsafe balance with SLA.
Good points are that they are a slightly more natural feeling ride when using
Lightweight LiFePO4 batteries

	reinforced puncture-proof double-wall rim specially design for ebike Powerful brushless hub motor Germany type motor(180°C copper winding+ best magnet) Hub Width: 135mm for rear and 100mm for front Wheel Size offered: 16", 18", 20", 24", 26", 700C & 28" Thick spoke(2.6mm)
	48V26AH Controller (12 MOZ tubes in it) Germany Quality type Protect and prolong the life of the Motor Protect the battery from being over-charge and discharge
	Thumb throttle
	Twist Throttle
	Pedal assistant Sensor (Pedelec sensor) Sensing the torque and power of the motor accordingly, true pedal assist management Integrate your manual pedal with motor power
	Brake lever, shut off motor when you brake

Our Service

Based on our own factory, we can offer you the best quality motor conversion kit wth the most competitive price. And with our 2 years warranty service, you can offer your customer with best service.

Based on our trading team, we can answer your inquiry in one day business.

Based on our trading experience, we can arrange your shipment with fast delivery both by air and by sea at a very reasonable price

WE ARE FACTORY

OUR FACTORY PRODUCTION LINE DIY Electric Bike Kit

Product Package

DIY Electric Bike Kit Images
